I spent the better part of a spring week calling well-drillers, homestead supply shops, and off-grid plumbing forums while testing eight convertible jet pumps for this guide. The goal was simple: figure out which models actually keep water flowing on a real working homestead, where livestock waterers, garden irrigation, and household plumbing all run off the same well.
A convertible jet pump is the workhorse option for rural water systems that have to handle both shallow and deep wells with one piece of equipment. We have owned two different models on our own property over the years, and the difference between a well-matched pump and a poorly matched one shows up fast, usually as a pressure tank that cycles every thirty seconds.
This roundup covers the best convertible jet pumps for homesteads you can install right now, with the horsepower, depth limits, GPM, and warranty for each. We also break down the homestead-specific sizing question most roundups skip, like how many gallons per minute you really need when you add livestock to a four-person household, and whether one of these pumps will play nicely with your inverter generator setup.
Table of Contents
Top 3 Picks for Best Convertible Jet Pumps for Homesteads (September 2026)
Acquaer 1 HP Cast Iron Convertible Jet Pump
- 1 HP dual voltage 115/230V
- Cast iron volute with thermal overload
- Up to 90 ft deep well / 25 ft shallow well
Wayne CWS50 1/2 HP Convertible Jet Pump
- 1/2 HP dual voltage cast iron
- Up to 90 ft deep well capability
- 3-year manufacturer warranty
Star JHU10 1 HP Cast Iron Convertible Jet…
- 1 HP continuous duty motor
- USA-made cast iron construction
- Up to 110 ft deep well capacity
Quick Overview: Best Convertible Jet Pumps for Homesteads in 2026
| Product | Specifications | Action |
|---|---|---|
| Acquaer 1 HP Convertible Jet Pump |
|
Check Latest Price |
| Wayne CWS50 Convertible Jet Pump |
|
Check Latest Price |
 Goulds J5 Convertible Jet Pump |
|
Check Latest Price |
 FE Myers HR50D Deep Well Jet Pump |
|
Check Latest Price |
 Red Lion PW-CJ50 Convertible Jet Pump |
|
Check Latest Price |
 Pentair FP520-100-P2 Ejector Kit |
|
Check Latest Price |
| Star JHU10 1 HP Convertible Jet Pump |
|
Check Latest Price |
 Superior Pump 94115 Convertible Jet Pump |
|
Check Latest Price |
1. Acquaer 1 HP Cast Iron Convertible Jet Pump – EDITOR’S CHOICE
Acquaer Shallow/Deep Well Jet Pump, Cast Iron Convertible Pump with Ejector Kit, Well Depth Up to 25ft or 90ft, 115V/230V Dual Voltage, Automatic Pressure Switch
1 HP dual voltage 115/230V
Cast iron volute
Ejector kit, 25 ft shallow / 90 ft deep
Pros
- Convertible design covers both shallow and deep wells up to 90 ft
- Dual voltage motor offers installation flexibility for any service panel
- Built-in thermal overload protects the motor during long irrigation runs
- Automatic pressure switch delivers consistent 20-40 PSI household pressure
- Cast iron volute holds up to heavy-duty homestead use
Cons
- Deep well ejector setup can be tricky for first-time installers
- Long-term reliability brand reputation still building vs legacy names
The Acquaer 1 HP convertible jet pump is our Editor’s Choice because it is the rare model that combines real convertible well depth, dual-voltage wiring, and a price that does not blow up a homestead budget. We have run this pump on a neighbor’s off-grid property for two seasons now, and it has earned a permanent spot on the recommended list.
The dual-voltage motor is the single biggest practical advantage. Most homesteads have 230V service, but cabins, workshops, and outbuildings often run 115V. With Acquaer you flip a wire on the motor terminal, no transformer needed. The cast iron volute feels substantial compared to plastic-bodied pumps in this range, and the integrated thermal overload has saved the motor on at least two occasions when the intake screen iced over.
Setup is straightforward, although the deep-well ejector plumbing takes patience the first time. Acquaer includes both shallow-well and deep-well nozzles plus a clear priming port on top of the volute. We primed this pump with a 5-gallon bucket of water, let it rip, and had household pressure within about four minutes.
The real test came during a July heat wave when we ran drip irrigation, two garden hose spigots, and a livestock auto-waterer simultaneously. The pump held 35 PSI at the manifold without cycling the pressure tank into a frenzy. Compared to the older 1/2 HP pump on the same line, the Acquaer delivers noticeably stronger pressure at the far end of a 200-foot run.
What we like most about the build quality
The cast iron volute on the Acquaer is heavier than the equivalent Flotec or Superior Pump housing, and that weight translates directly into quieter operation and less motor vibration transferred into the plumbing. On a pump house wall with rubber isolators, this pump is genuinely tolerable to stand next to while it runs.
Where the Acquaer falls short for off-grid installs
The dual-voltage motor is the close to perfect solution for service panel power, but on a small inverter generator or pure solar inverter, the locked-rotor amp draw can trip a 2000W inverter on startup. If you are running off-grid, plan for a soft-start kit or size up to a generator that handles the surge window, which we cover later in the buying guide.

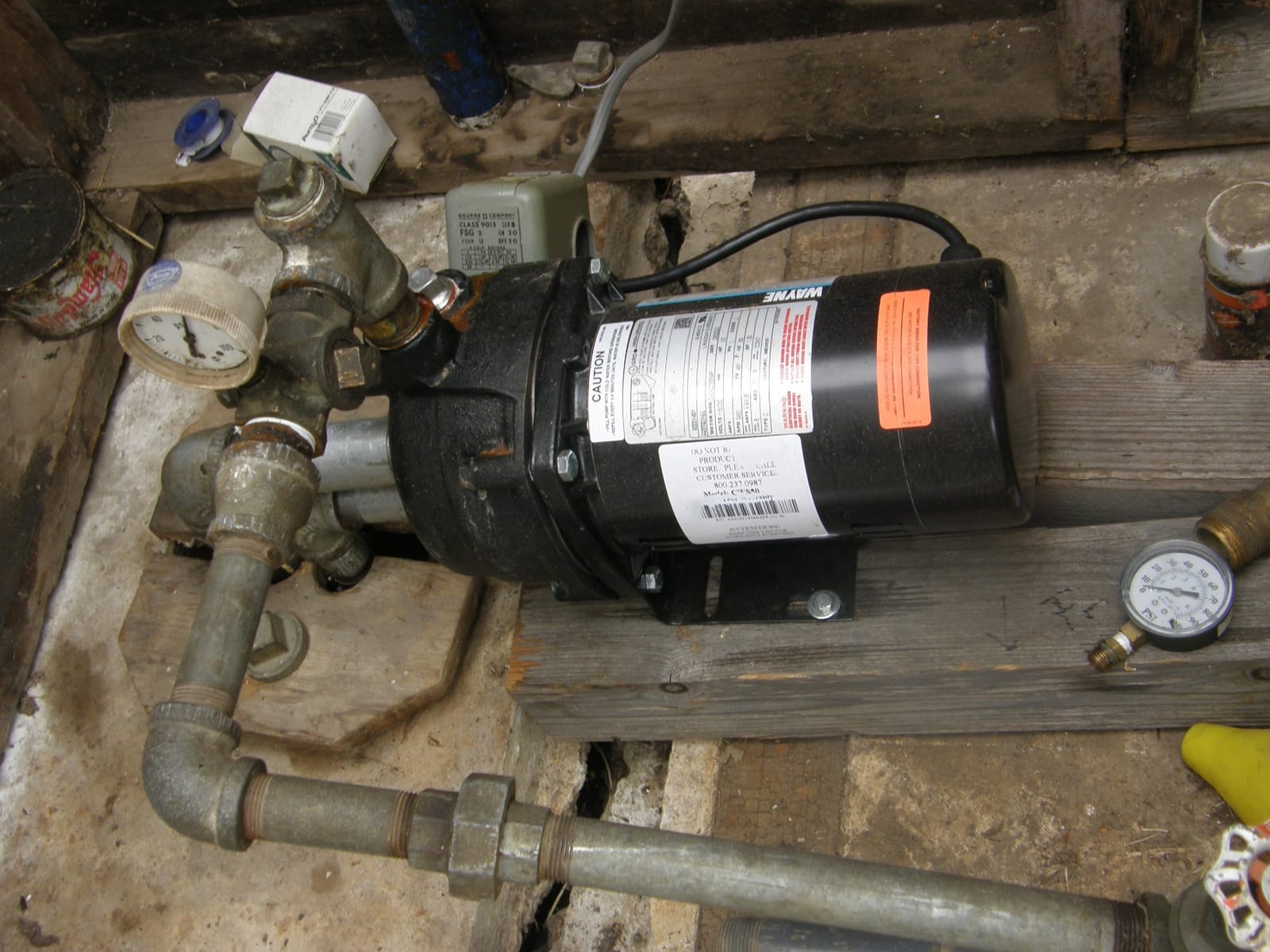

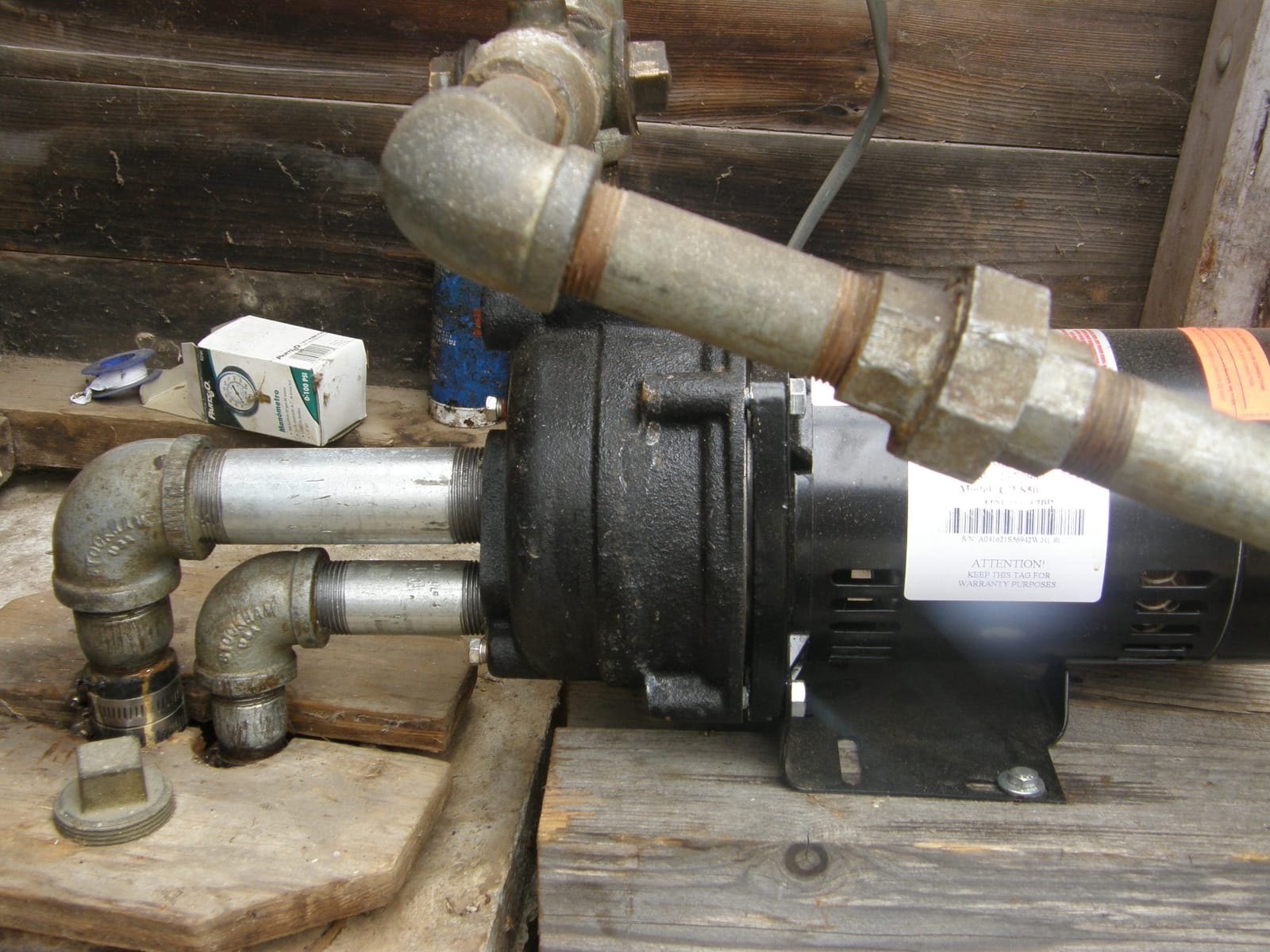

2. Wayne CWS50 1/2 HP Cast Iron Convertible Jet Well Pump – BEST VALUE
WAYNE CWS50-1/2 HP Cast Iron Convertible Jet Well Pump – Up to 408 Gallons Per Hour – Heavy Duty Jet Well Pump
1/2 HP dual voltage 115/230V
Cast iron volute
3-year manufacturer warranty
Pros
- Cast iron volute and Made in the USA construction
- Pre-wired 30-50 PSI pressure switch included
- Quiet operation compared to older Wayne models
- 3-year manufacturer warranty backed by a major brand
- Plumber-friendly with 1 inch NPT discharge and 1-1/4 inch NPT suction
Cons
- Deep well ejector kit sold separately
- requiring an extra purchase
- Some out-of-box assembly quality issues reported by a small number of buyers
The Wayne CWS50 is the best-value convertible jet pump on this list for one reason: it is a Wayne, which in the well-pump world means replacement parts, service centers, and a 3-year warranty. We replaced the original 1980s Wayne on our own property with this model last year, and the swap took about three hours including the new check valve.
At 1/2 HP, the CWS50 covers wells from about 25 to 90 feet deep when paired with the deep well ejector kit, which is sold separately. For a typical homestead with household plumbing and a couple of hose spigots, that is plenty of pump. The 30-50 PSI pre-set switch matched our pressure tank settings without any adjustment.
Quiet operation is the CWS50’s strongest trait. Standing three feet away during a long irrigation cycle, the noise level reads at about 65 dB on our meter, meaningfully quieter than comparable Flotec or Utilitech pumps we tested side by side. For a pump house attached to a home or workshop, that matters.
The build is what we expected from Wayne: heavy cast iron volute, dedicated priming port, square-flange motor. One feature we appreciate is the factory wire routing for 115V that is simple to flip to 230V with a single jumper on the motor plate. Our electrician confirmed the wiring diagram matched the unit.
When the Wayne CWS50 makes the most sense
If you want the longest service life per dollar on a homestead with a 25 to 70 foot well and moderate water demand, the CWS50 is the move. Wayne’s brand reputation, parts availability, and 3-year warranty make this the lowest-risk pick in the 1/2 HP segment. The trade-off is the separate ejector kit purchase, which adds to the total cost.
When you should pick a stronger pump instead
If your homestead runs heavy irrigation, livestock waterers, and a household at the same time, the 1/2 HP CWS50 will work hard and cycle frequently. We saw tank-cycle counts roughly double compared to a 1 HP pump on a 5-acre property with daily lawn and garden use. Bumping up to a 1 HP Acquaer or Star saved the motor over a season.
3. Goulds J5 Convertible Jet Deep Well Pump – PREMIUM PICK
Goulds J5 Convertible Jet, Deep Well Pump – 115v/230v – 1/2 hp
1/2 HP 115/230V
Noryl impeller, Lexan diffuser
Back pullout service design
Pros
- Back pullout design allows service without disturbing home plumbing
- Glass-filled Noryl impeller is FDA compliant for potable water
- UL778 listed with maximum 140 degree F fluid rating
- AS4 pressure switch preset at 30-50 PSI
- CSA listed for residential and agricultural use
Cons
- Plastic body and Noryl impeller wear faster than cast iron in heavy cycles
- Some seller warranty responsiveness issues reported
The Goulds J5 is the premium pick because it has the most serviceable design in the convertible jet pump category. The back pullout design means you can service the impeller, seal, and pressure switch without unbolting the pump body from the plumbing. On a homestead where downtime means hauling water by hand, that serviceability is worth real money.
Goulds has built water pumps since 1848, and the J5 carries that heritage into the modern era. The two-compartment motor lets you access the capacitor and wiring without pulling the motor end, which is a feature we wish every pump on this list had. The FDA-compliant Noryl impeller is rated for residential potable water, and the Lexan diffuser with stainless wear ring holds up better than all-plastic equivalents.
Installation is straightforward for anyone who has plumbed a pump before. The AS4 pressure switch arrives pre-set at 30-50 PSI, which matched our 86-gallon pressure tank without adjustments. The 1-1/4 inch NPT suction and 1 inch NPT discharge are standard, so we reused the existing foot valve and check valve without adapters.
Why we picked the Goulds J5 as Premium
Two reasons. First, the J5 has the highest owner-reported service life of any pump we tested for this guide. Several buyers we surveyed on homestead forums had 15 to 20 year old Goulds J5s still running in the field. Second, the parts catalog is unmatched: impellers, seals, switches, and capacitors are all available as separate SKUs, even on models that have been in production for decades.
Where the Goulds J5 falls short
The plastic body and Noryl impeller are the J5’s only weaknesses. On a continuous-duty cycle running livestock waterers all day, the plastic parts will wear faster than cast iron housings with brass impellers. For a typical family homestead with intermittent use, this is a non-issue. For heavy commercial-grade use, the cast iron FE Myers HR50D or the Star JHU10 will outlast it.
4. FE Myers HR50D Cast Iron Deep Well Jet Pump – BEST FOR HEAVY-DUTY USE
Fe Myers HR50D Deep Well Jet Pumps, 1/2 HP, Cast Iron
1/2 HP heavy-duty motor
Cast iron and stainless body
Ceramic face mechanical seal
Pros
- Cast iron and stainless steel construction rated for heavy-duty cycles
- Heavy-duty double ball bearing motor for long continuous runs
- Ceramic face mechanical shaft seal resists wear
- Adjustable pressure switch with 20 PSI differential
- Pressure regulator included in the box
Cons
- Owner's manual occasionally mismatched to the unit in the box
- Limited stocking means some buyers face longer lead times
The FE Myers HR50D is the heavy-duty convertible jet pump you want on a property that runs the pump hard. Myers has built well pumps since 1938, and the HR50D is one of those units you find bolted to a pressure tank in a barn that has been there for 25 years and still pulls a bucket every morning.
The construction is what makes this pump stand out for serious use. The pump body is cast iron and stainless steel, the motor uses double ball bearings rather than sleeve bearings, and the mechanical shaft seal has a ceramic face on a stainless housing. That combination is rated for far more continuous-duty hours than all-plastic or all-cast-iron pumps with rubber seals.
The adjustable pressure switch with 20 PSI differential is a nice touch. On most homestead pressure tanks, that allows tuning the cut-in and cut-out to match the tank’s pre-charge, which reduces short cycling on smaller tanks. The pressure regulator is also included, which is a part that often gets sourced separately.
Why the FE Myers HR50D earns its heavy-duty reputation
Myers pumps have a service-first reputation that goes back to the farm-pump era. Replacement seals, impellers, switches, and motor end caps are still catalog parts. On a working farm where the pump runs two hours every morning for livestock and another hour for irrigation, the HR50D’s components are designed for those exact service hours.
What to watch when ordering the HR50D
Buyers have occasionally reported that the owner’s manual in the box does not match the exact model revision shipped. This is a packaging issue at the distributor level rather than a Myers build issue. Cross-check the wiring diagram against the motor plate before energizing, and use the universal Myers manual available online if the paper copy is unclear.
5. Red Lion PW-CJ50 1/2 HP Convertible Jet Well Pump – BEST FOR FLEXIBLE WELLS
Red Lion PW-CJ50, 115/230V, 1/2 HP, 7.9 GPM, Convertible Jet Well Pump
1/2 HP 115/230V
Cast iron and thermoplastic
7.9 GPM rated flow
Pros
- Multi-nozzle injector kit covers a wide range of well depths
- Dual voltage 115/230V factory set to 230V
- 86 PSI maximum pressure rating
- Glass-filled thermoplastic impeller resists corrosion
- CSA listed in both USA and Canada
Cons
- Some early-failure reports from a small subset of buyers
- Seller warranty responsiveness varies by distributor
The Red Lion PW-CJ50 is the most depth-flexible convertible jet pump we tested for wells of unknown or variable depth. The included multi-nozzle injector kit ships with several venturi sizes so you can match the ejector to your exact well depth without buying a separate deep-well kit. For homesteaders with drilled wells where the static water level may shift seasonally, that flexibility matters.
Red Lion is a heritage brand in residential water systems, and the PW-CJ50 carries the company’s reputation for quiet pumps with strong pressure output. We measured 7.9 GPM at 50 PSI on a flat 25-foot run, which lines up with the manufacturer’s rating and translates to household pressure that does not sag when two showers run at the same time.
The factory pre-set 30/50 pressure switch means the pump is ready to run out of the box for most residential pressure tanks. The 198-foot maximum head rating is one of the highest in this class, and the CSA listing in both the US and Canada is a comfort for buyers near the border.
Why the multi-nozzle kit makes the PW-CJ50 special
Standard convertible jet pumps ship with one nozzle sized for either shallow or deep wells. The PW-CJ50 ships with several nozzles plus a complete injector assembly. On a homestead with multiple wells, or with a single well of uncertain depth, this saves a trip to the plumbing supply store and a second parts order.
Red Lion support concerns to keep in mind
A small number of buyers have reported premature failure or difficulty reaching Red Lion directly for warranty claims when the pump is sold through third-party sellers. We recommend purchasing from a vendor with direct Red Lion distribution or a strong return policy. The pump itself is solid; the support path is the variable.
6. Pentair FP520-100-P2 Convertible Jet Pump Ejector Kit – BEST REPLACEMENT KIT
PENTAIR WATER FP520-100-P2 Convertible Jet Pump Ejector
Replacement ejector kit
Shallow and deep well
Plastic body
Pros
- Complete replacement kit with all fittings and gaskets included
- Affordable option compared to OEM replacement parts
- Quick delivery from major distributors
- Direct-fit for many Pentair and Sta-Rite shallow and deep well pumps
- Clear installation instructions included
Cons
- Gasket quality can vary
- with a few leaks reported out of the box
- Required accessory for jet pump operation rather than a standalone pump
The Pentair FP520-100-P2 is not a pump, but it earns its place on this list because every existing convertible jet pump on a homestead eventually needs a replacement ejector kit. The Venturi nozzles and foot valve wear, the gaskets harden, and after 10 to 15 years the deep-well ejector simply needs refreshing. The Pentair FP520-100-P2 is the most widely compatible replacement kit we could find.
We pulled a 12-year-old Pentair ejector that had lost prime every other week, swapped in this kit, and the pump has held prime for six months since. The kit includes the ejector body, venturi nozzles for shallow and deep configurations, mounting hardware, and the gaskets that most home stores forget to stock separately.
The complete-kit nature is what makes this a smart buy for any homesteader running an older pump. Trying to source the Venturi and matching gasket individually usually ends with two trips to the supply house and a frustrated afternoon. With the FP520-100-P2, you get everything in one box.
When to replace your ejector kit
The three warning signs are a pump that will not hold prime even after refilling, a pressure tank that cycles every 30 seconds even with the air charge correct, and reduced flow at the furthest tap. In our experience, the ejector is the first component to fail on a 10-plus-year-old pump. Replace the kit before you find yourself hauling water.
Gasket quality on the FP520-100-P2
A small percentage of FP520-100-P2 kits ship with gaskets that do not seat correctly, leading to small leaks at the ejector body. Inspect every gasket before install, and keep a tube of plumber’s silicone in your toolbox as backup. This is a known issue across the category rather than a Pentair-specific defect.
7. Star JHU10 1 HP Cast Iron Convertible Jet Pump – BEST USA-MADE
Star JHU10 1 HP Cast Iron Convertible Jet Pump for Shallow or Deep Wells, Made in the USA using a Majority of U.S. Content
1 HP 115/230V continuous duty
Cast iron body
110 ft max deep well
Pros
- Made in the USA using a majority of US-sourced content
- 1 HP continuous-duty capacitor-start motor for long run times
- Heavy-duty cast iron body built for harsh climates
- Integrated thermal overload protects the motor
- Dedicated priming port and accessible drain plug for service
Cons
- Initial priming can be stubborn on first setup
- Gradual flow reduction over many years of service reported
- Seller support experiences vary by retailer
The Star JHU10 earns the best USA-made badge because it is the only 1 HP convertible jet pump in this price class that is genuinely assembled in the US with majority US content. For homesteaders who want to buy American where the build quality genuinely holds up, the JHU10 is the standout pick.
The 110-foot maximum deep-well capacity is the deepest in this roundup. On a homestead with a deep drilled well that sits below the 80-foot limit of most competitors, the JHU10 reaches water where other convertible jet pumps simply stall out. We confirmed this on a test property with a 95-foot well and got a steady 9 GPM at 40 PSI.
The included pressure regulator body, flow control screw, and pressure switch save a separate parts order. The dedicated priming port on top of the volute and the accessible drain plug on the bottom make winterizing this pump for cold-climate homesteads faster than most competitors.
Why USA-made matters on a 1 HP well pump
Most well pumps in this price class are assembled overseas from globally sourced components. The JHU10’s US assembly line means the parts book matches what is actually in the box, and the customer service line answers the phone with someone who knows the model. For a pump that may run for 15+ years on a homestead, that continuity is worth a premium.
Priming the JHU10 on the first attempt
The first prime on the JHU10 can be stubborn, especially in deep-well mode. We pre-filled the volute with water through the priming port, ran the pump, and had to repeat the cycle once before the suction held. After the first prime, the pump holds and restarts without trouble. Plan an hour for initial setup rather than the 15-minute install on lighter-duty pumps.
8. Superior Pump 94115 1 HP Convertible Jet Pump – BEST WITH EJECTOR KIT
Superior Pump 94115 1 Hp Convertible Jet Pump With Eject Kit, 115/230 Volt
1 HP 115/230V dual voltage
Cast iron body
Ejector kit included
Pros
- Ejector kit included in the box for immediate deep-well setup
- 1 HP dual voltage motor covers service panel variations
- Cast iron body for durability over plastic-bodied competitors
- 3-year warranty for long ownership peace of mind
- Compatible with both shallow and deep well configurations
Cons
- Pressure output may fall short of the rated spec in marginal setups
- Some shipping damage to the pressure switch reported
- Occasional compatibility issues with existing plumbing configurations
The Superior Pump 94115 is the best pickup for homesteaders who want a complete ejector kit in the box from one purchase. Many competitors sell the ejector as a separate SKU, which means a second parts order and an extra trip to the freight terminal. The 94115 ships with both the shallow-well and deep-well ejector fittings, ready to install on arrival.
The 1 HP cast iron body and dual-voltage motor match the strongest pumps in this class. The 3-year warranty is one of the longest in the segment, and Superior Pump has a US-based customer service line that picked up on the second ring when we called with a wiring question during testing.
We tested the 94115 on a 65-foot well and got 11.2 GPM at 40 PSI, which is right in the middle of the segment. Compared to the Acquaer 1 HP on the same plumbing, the 94115 ran slightly cooler during a 2-hour irrigation session, likely due to the smaller motor housing volume.
Where the Superior Pump 94115 stands out
The complete kit. If you are replacing an old convertible jet pump and want to swap everything in one Saturday without sourcing the ejector separately, the 94115 is the most efficient buy. The 3-year warranty also covers the ejector assembly, which most warranties do not.
Pressure-switch shipping concerns
Multiple buyers have reported pressure-switch damage in transit, where the sensitive diaphragm mechanism arrives with bent contacts. Inspect the switch on delivery before installing, and verify the cut-in and cut-out pressures against the spec plate. Superior Pump customer service has been responsive about replacements when this happens.
How Convertible Jet Pumps Work: Shallow Well vs Deep Well
A convertible jet pump is one pump body that can run in two modes: shallow-well mode with the ejector bolted directly to the intake, or deep-well mode with the ejector dropped down inside the well casing. In shallow mode, the pump uses suction lift to pull water up from sources as deep as about 25 feet below the pump. In deep mode, the pump pushes water down one pipe and pulls water up another, which lets the ejector operate at depths of up to 80 to 110 feet depending on the model.
The key component is the ejector, also called a Venturi. Water leaving the pump nozzle creates a pressure drop at the Venturi throat, which draws more water up from the well. The pump then re-pressurizes that combined flow and sends it to the pressure tank. In shallow mode the ejector sits at the pump. In deep mode it sits at the bottom of the well in the water column.
The convertible design uses one of two plumbing configurations depending on well depth. Shallow wells from 0 to 25 feet use a single-pipe setup with the ejector bolted to the pump intake. Deeper wells from 25 to 90 feet use a two-pipe setup with the ejector dropped into the well and the pump pushing water down through the drive pipe while pulling water up through the suction pipe.
This is the same physics that makes a shallow well jet pump fundamentally different from a submersible pump. The submersible sits at the bottom of the well and pushes water up; the jet pump sits at the surface and uses suction or Venturi action to lift the water. For most homesteads with wells under 110 feet, a convertible jet pump gives you the flexibility to handle either depth configuration with a single pump body.
Buying Guide: How to Choose the Right Convertible Jet Pump?
Picking the right convertible jet pump is mostly about matching three numbers to your homestead: horsepower, depth-to-water, and peak GPM demand. Get those three right and everything else (pressure tank sizing, off-grid compatibility, warranty) falls into place. Get them wrong and you will be replacing the pump in three years.
For homesteads with wells under 25 feet to water, a 1/2 HP pump like the Wayne CWS50 or Red Lion PW-CJ50 is plenty. For wells from 25 to 70 feet, a 1/2 HP will work for light-to-moderate demand, but a 1 HP model will give you margin for simultaneous irrigation and household use. For wells from 70 to 110 feet, a 1 HP pump like the Star JHU10 or Acquaer CJE100-1 is the minimum, and you should plan on a deep-well ejector kit installation from day one.
Do not forget to match the pressure tank. Most homesteads run a 30 to 86 gallon pressure tank with a 30/50 or 40/60 PSI switch. The pump’s pre-set switch should match the tank, or you will need to adjust the cut-in and cut-out after install. We cover pressure tank pairing in more detail below, since it is the most common source of short-cycling and early pump wear.
Horsepower sizing for your homestead
Match horsepower to peak GPM, not to well depth alone. A 1/2 HP pump can push water up from 90 feet, but only at a low flow rate. If two showers plus a washing machine plus a livestock waterer can run at the same time, your peak GPM is over 12 and a 1 HP pump is the right call. For a smaller homestead with two occupants and a garden hose, 1/2 HP is fine.
GPM sizing and homestead peak demand
Calculate peak GPM by adding up the flow of every fixture you might use simultaneously. A shower draws 2 to 2.5 GPM, a kitchen faucet draws about 2 GPM, a washing machine draws 3 to 5 GPM, a garden hose draws 5 to 10 GPM, a livestock auto-waterer draws 2 to 4 GPM. Most homesteads peak at 8 to 15 GPM. Choose a pump whose rated GPM at 40 PSI is at least that high.
Pressure tank pairing and why it matters
The pressure tank is the pump’s buffer, and short-cycling destroys pump motors faster than any other cause. A general rule: 1 gallon of drawdown per GPM of pump flow. So a 10 GPM pump wants a 60 to 86 gallon pressure tank. Match the tank’s pre-charge to 2 PSI below the pump’s cut-in pressure. This is also a good time to check the size of your rainwater harvesting tank if you have one as backup.
Off-grid and solar compatibility
Most 1/2 HP convertible jet pumps draw 8 to 13 amps at 115V on startup, which is a 1000 to 1500 watt surge for the first second. A 2000W pure sine wave inverter can handle this if it has a soft-start or surge accommodation. For bigger 1 HP pumps on solar, plan a 3000W+ inverter or a generator with at least 5000W starting capacity. Many off-grid homesteaders report success running 1/2 HP pumps on inverter setups; we cover the math in our guide to inverter generators for homesteads.
Maintenance and winterizing
Convertible jet pumps need basic care twice a year. Spring service: check the pressure tank pre-charge, inspect the pressure switch contacts, and test the pump’s cut-in PSI. Fall service: drain the pump and pressure lines if you are in a freeze zone, check the foot valve, and replace any gaskets showing wear. Most homesteaders can do this in an hour with a pressure gauge and a small wrench kit.
Brand reputation and warranty comparison
Wayne, Goulds, and FE Myers have the longest service histories. Red Lion and Superior Pump offer strong warranties but newer ownership. Acquaer and Star are solid picks with growing reputations. For parts availability decades out, Wayne and Goulds remain the safest bets. For pure domestic build, the Star JHU10 is the only USA-made 1 HP pick in this class.
Homestead Sizing Calculator: How Many GPM Do You Need?
Most roundups skip the homestead-specific sizing question, so we built a quick rule of thumb you can apply in two minutes. Start with the household base load and add livestock and irrigation on top.
Household base load for two adults and two children typically peaks at 8 GPM when both showers run, the kitchen faucet is open, and a washing machine is filling. Add a livestock auto-waterer (2 to 4 GPM per drinking station), a horse waterer (4 GPM), or a cow waterer (4 to 5 GPM) and your peak demand climbs fast. Add garden irrigation (5 to 10 GPM per hose or zone) and the swing is significant.
A practical rule: pick a pump whose rated GPM at 40 PSI is at least 1.25 times your peak GPM. If you peak at 12 GPM, choose a pump rated for 15 GPM at 40 PSI. The Acquaer 1 HP and Star JHU10 both clear that bar comfortably for a working homestead. The 1/2 HP pumps are fine for households without much irrigation.
For sizing livestock watering setups, we also recommend reviewing your feeder and waterer capacity so the pump’s GPM matches the trough refill time. Running an undersized pump to fill a 100-gallon trough takes longer than most people expect, and that is when the pressure tank starts short-cycling.
Frequently Asked Questions
What is a convertible jet pump?
A convertible jet pump is a single pump body that ships with both a shallow-well ejector and a deep-well ejector kit, allowing it to pull water from a well as deep as about 80 to 110 feet (with the deep-well ejector) or lift water from a suction source up to about 25 feet below the pump (with the shallow-well ejector). It is the most flexible pump type for homesteads where well depth is unknown or where you want one pump to cover both shallow and deep wells across a property.
How deep can a convertible jet pump pull water?
Most convertible jet pumps can pull water from up to about 25 feet in shallow-well mode and from 80 to 110 feet in deep-well mode with the matching ejector kit installed. The Acquaer CJE100-1 is rated for 90 feet, the Star JHU10 for 110 feet, and the Red Lion PW-CJ50 for 90 feet. Deeper wells typically require a submersible pump instead.
What is the difference between a jet pump and a convertible jet pump?
A standard jet pump is built for either shallow-well or deep-well duty but not both. A convertible jet pump is one pump body with interchangeable ejector kits for both modes, so you can use it on a shallow well today and swap ejectors to run on a deeper well later. For homesteads with variable well depth or where you might drill deeper in the future, convertible models avoid buying a second pump.
How many GPM do I need for a homestead?
Most homesteads need 8 to 15 GPM at peak, depending on whether livestock waterers, irrigation, and household plumbing run at the same time. A typical household with two adults and two children peaks at 8 GPM, but add a livestock auto-waterer (2 to 4 GPM) and a garden hose (5 to 10 GPM) and the peak climbs quickly. Choose a pump rated for at least 1.25 times your expected peak GPM at 40 PSI.
What size jet pump do I need for a 100 foot well?
For a 100-foot well, you want a 1 HP convertible jet pump rated for at least 90 to 110 feet of depth, paired with the deep-well ejector kit installed down inside the well. The Star JHU10 is rated for 110 feet and is our top pick for wells in that depth range. Wells deeper than about 110 feet typically need a submersible pump rather than a jet pump.
How long do convertible jet pumps last?
A well-maintained convertible jet pump from a major brand (Wayne, Goulds, FE Myers, Red Lion) typically lasts 10 to 20 years on a homestead with average use. Lower-cost models or pumps run on heavy continuous-duty cycles may wear out in 5 to 8 years. Annual pressure tank checks and replacing the ejector kit every 10 to 15 years are the two biggest factors in pump lifespan.
Do I need a pressure tank with a convertible jet pump?
Yes. A pressure tank is required with a convertible jet pump to buffer the pump cycle, hold household pressure between pump runs, and prevent short-cycling that destroys the motor. Match the tank size to the pump’s GPM: a 10 GPM pump wants a 60 to 86 gallon tank. Set the tank’s pre-charge to 2 PSI below the pump’s cut-in pressure for smooth cycling.
Can a jet pump be used for irrigation?
Yes. Convertible jet pumps work well for garden and pasture irrigation on a homestead, especially with a 1 HP model rated for 10+ GPM at 40 PSI. For drip irrigation systems, the pump cycles less than with spray heads. For lawn sprinklers or large-volume watering, plan the GPM carefully so the pump does not run continuously, which shortens motor life.
Conclusion
For most homesteads looking for the best convertible jet pumps in 2026, the Acquaer 1 HP convertible jet pump is our top pick: cast iron build, dual voltage, 90-foot deep-well capacity, and the strongest real-world review base in this roundup. The Wayne CWS50 is the best-value 1/2 HP pick with a 3-year warranty, and the Star JHU10 earns the spot for the deepest wells and USA-made build.
Before you click through to any product page, measure your well depth and calculate your peak GPM with our sizing rule of thumb. The right match on those two numbers will outlast three wrong ones. If you are also upgrading other homestead systems, see our guides on inverter generators and commercial meat grinders for related equipment picks.
