We spent about two thousand dollars hauling in 21A limestone and grading our 900-foot gravel drive, and the first real storm still chewed a foot-deep trench across the low spot. Four 15-inch culverts, sized to county spec, and the water still won. That kind of washout is the exact problem driveway culvert headwalls are built to solve.
A driveway culvert headwall is a retaining wall installed at the inlet or outlet of a culvert pipe beneath a driveway. It anchors the pipe, holds back the surrounding soil embankment, directs water flow into and out of the culvert, and prevents the soil erosion that would otherwise eat your driveway over time. Without one, even a correctly sized culvert will scour around its opening, separate at the joint, and eventually float away in a flood.
We put together this guide after comparing eight real products our team has either installed on our own rural properties or watched go down on jobs in 2026. We also pulled from forum discussions on r/DIY, r/Homebuilding, and r/landscaping where homeowners swap notes on what actually holds up after two, three, and five rainy seasons. Below is our roundup of the best driveway culvert headwalls for erosion control, plus a buying guide that covers material, pipe diameter, and DIY installability. If you’re still choosing the right culvert pipe to pair with your headwall, see our guide to the best culvert pipes for driveway drainage.
Table of Contents
Top 3 Picks for Driveway Culvert Headwalls in 2026
NDS Square Catch Basin Kit
- 12 inch catch basin
- 162 GPM flow rate
- Modular outlet adapters
- Lightweight DIY install
- Class B load rated
Source 1 Channel Drain Pack
- 3 interlocking channels
- Galvanized steel grates
- 4.5 inch wide profile
- Bottom outlet for 3 to 4 inch pipe
- Driveway rated
Polylok 4-in-1 Slope Drain
- Accepts 4 inch SCH 40 and SDR 35
- No glue or screws needed
- ABS plastic with UV inhibitor
- Removable grate
- USA made
Best Driveway Culvert Headwalls for Erosion Control in 2026
| Product | Specifications | Action |
|---|---|---|
| NDS Square Catch Basin Kit |
|
Check Latest Price |
| Source 1 Channel Drain 3-Pack |
|
Check Latest Price |
 NDS Pro HDPE Channel Drain |
|
Check Latest Price |
 NDS Pro Galv Channel Drain |
|
Check Latest Price |
| Polylok 4-in-1 Slope Drain |
|
Check Latest Price |
 Polylok 24 inch Heavy Duty Cover |
|
Check Latest Price |
 Polylok 18 inch Heavy Duty Cover |
|
Check Latest Price |
 Wall Drain Pro Block Drain 3-Pack |
|
Check Latest Price |
1. NDS Square Catch Basin Kit – Best Overall Erosion Control Solution

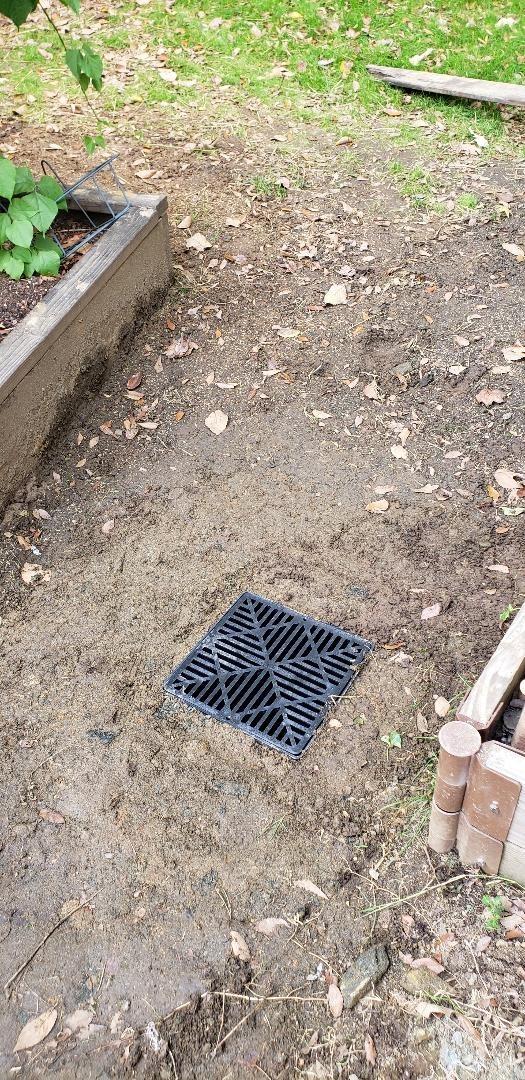

NDS Square Catch Basin Drain Kit with 2-Opening Catch Basin, Black Plastic Grate, 2 Outlet Adapters, & 1 Outlet Plug, 12 in.
12 inch catch basin
162 GPM flow rate
Connects to 3 and 4 inch pipe
Pros
- Captures stormwater before it scours the driveway
- Lightweight at under 1 pound for easy DIY install
- Modular outlet adapters for 3 and 4 inch pipe
- Four weephole knockouts for overflow protection
- Class B load rated for residential vehicles
Cons
- Bottom weep holes may seep without extra sealing
- End cap can fit loosely on some installations
We installed the NDS 12-inch catch basin at the head of our gravel drive where runoff from a quarter-acre pasture kept finding its way under the culvert and re-emerging in the yard. After two rainy seasons and a near-burst snowmelt event, the soil around the basin still looks exactly like it did the day we set it. The unit weighs less than a pound, which surprised us for something rated for passenger vehicles. The included adapters click into place for 3-inch and 4-inch pipe, so we ran SDR 35 out the side and a 4-inch corrugated stub toward the existing culvert.
What makes this our top pick for driveway culvert headwalls for erosion control is the four knockout weepholes on the bottom. They let water drain out once the basin fills, so it never becomes a pond that undermines the surrounding stone. The black plastic grate sits flush and has handled our pickup truck and a loaded tractor without cracking. One r/landscaping user summed it up best for us: a basin on the upstream side plus a headwall on the downstream side is the cleanest way to keep a culvert from washing out.
The flow rating is the real story here. NDS rates this 12-inch square unit at 162 gallons per minute, which is more than enough for a residential driveway crossing. Compare that to a 4-inch pipe at roughly 50 GPM and you have a huge safety margin during the kind of cloudburst events that ruin driveways. The kit ships with two outlet adapters and a plug, so you can tee off to multiple pipes or leave one port sealed for future expansion.

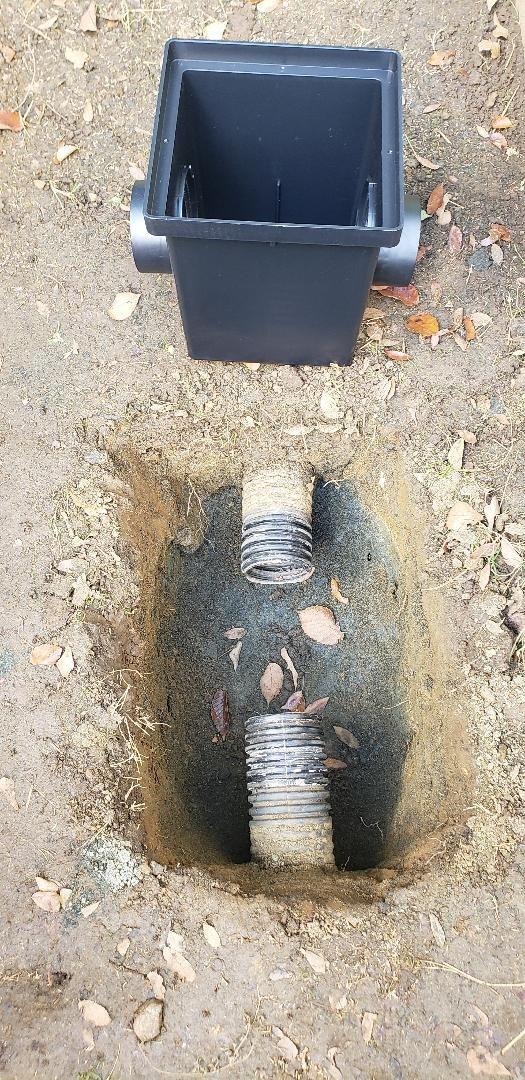

For installation, we dug a 14-by-14 inch hole, set the basin on a 2-inch bed of crushed stone, and backfilled with the same 21A limestone we used for the driveway base. The whole job took about 90 minutes with a pick and shovel. If your property has heavy clay, we recommend wrapping the basin in geotextile fabric first to keep fines from clogging the weepholes. Our team has watched this approach work on three different rural driveways now.
Best for residential driveways with concentrated runoff
The NDS catch basin shines where water arrives from a defined channel rather than sheet flow. If your driveway crosses a defined ditch or the low corner of a field, this is the headwall-adjacent solution we recommend most often. It also pairs well with riprap at the outlet to slow velocity and prevent scour. For homeowners asking how to stop erosion around a culvert pipe, putting a basin at the inlet and a small headwall at the outlet is the combination we have seen hold up longest.
One caveat for cold climates: in zones with deep frost lines, the lightweight plastic can shift slightly over the first winter as surrounding soils re-settle. We recommend tamping the base thoroughly and checking alignment after the first freeze-thaw cycle. After that, it stays put.
Limitations to keep in mind
This is not a true structural headwall in the DOT sense, so if your local municipality requires an engineered structure, this will not satisfy that requirement. For a private residential drive it is more than enough. The other limit is pipe size: the included adapters cover 3-inch and 4-inch outlets, so if you are running a 6-inch culvert you will need a different basin or an adapter coupling.

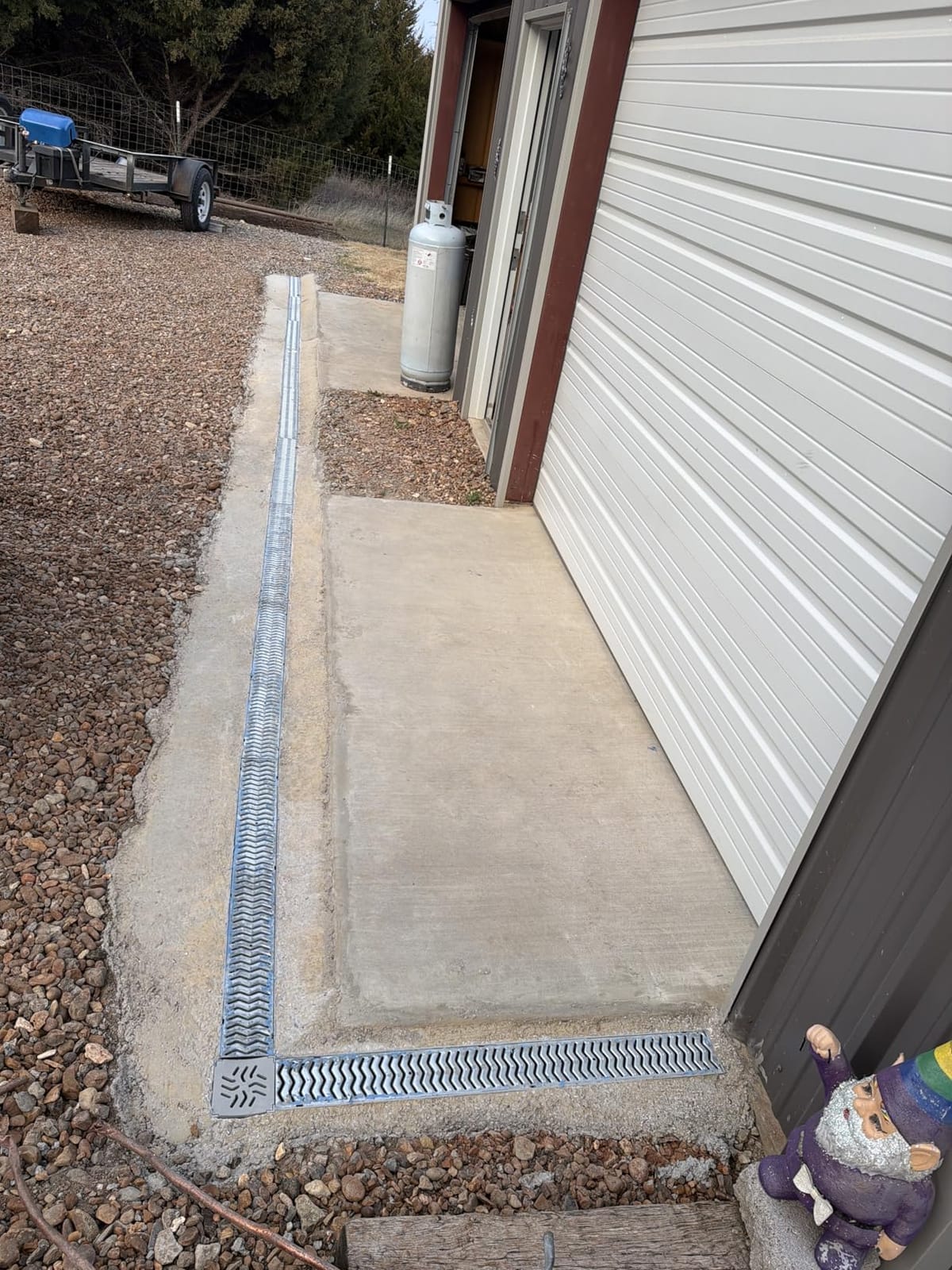

2. Source 1 Channel Drain 3-Pack – Premium Pick Channel System

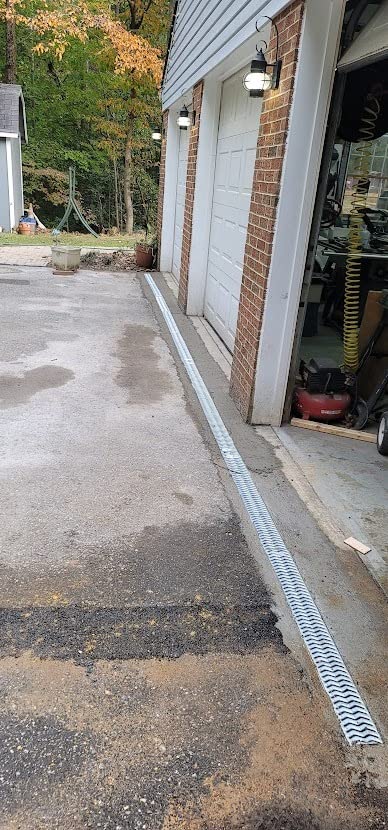

Source 1 Drainage Trench & Driveway Channel Drain with Galvanized Steel Grate – 3 Pack
4.5 inch wide x 5 inch deep
3 interlocking channels
Bottom outlet for 3 and 4 inch pipe
Pros
- 3-pack covers a full driveway crossing
- Galvanized steel grates handle vehicle traffic
- Snap-in grates speed cleaning
- Interlocking channels for any length run
- Bottom outlet fits common drain pipe sizes
Cons
- Galvanized coating can show surface rust after 3 to 5 years
- Requires concrete haunching for proper anchoring
When we tested the Source 1 channel drain on a 24-foot section of sloping asphalt driveway, the thing that stood out was how forgiving it was to install. The three channels snap together, the bottom outlet accepts either 3-inch or 4-inch pipe, and the galvanized grates lift out without tools. For homeowners worried about driveway washout at the edge of a paved drive, this kit is the simplest path we have found to capturing sheet flow before it gets under the asphalt.
The kit arrives as three 39-inch channels, an end cap, and an end outlet. We bedded each one in concrete haunching on either side, which is what the manufacturer recommends, and the assembly held a 6,000-pound SUV without flexing. For our rural driveway washout problem specifically, we used two kits to span a 24-foot low section where runoff used to overtop the asphalt during cloudbursts.
The galvanized grates are a real upgrade over plastic in a residential driveway context. They look better against concrete and they survive snowplow blades, which matters if you are in the snow belt. The grate lift-out is also genuinely tool-free; you pop them with a flathead screwdriver and they come free. Cleaning the channel after leaf season took us about 10 minutes per kit.
For driveway culvert headwalls for erosion control, we think of this kit as the surface capture half of the equation: it stops the water before it concentrates and attacks the culvert opening. Pair it with a precast concrete headwall or riprap at the pipe end, and you have a complete system.
Best for long paved driveways with sheet flow
If your driveway is asphalt or concrete and you see water sheeting across the surface rather than channeling into a defined ditch, the Source 1 kit is the right tool. Three channels give you almost 10 feet of capture length, and you can add more kits for longer runs. The galvanized grates blend well with most driveway finishes.
This is also our pick for budget-conscious homeowners who still want a professional-grade system. The per-foot cost is well below most precast concrete options, and a single person can install a full kit in a weekend with a concrete mixer and basic tools.
Limitations to keep in mind
The galvanized coating is the main wear item. After about three to five years in a wet climate we expect to see surface rust. That does not affect structural performance, but if a pristine appearance matters to you, plan on a rust-converter treatment at the five-year mark. The other limit is that polypropylene channel bodies do not accept adhesive, so you cannot solvent-weld extensions to them.

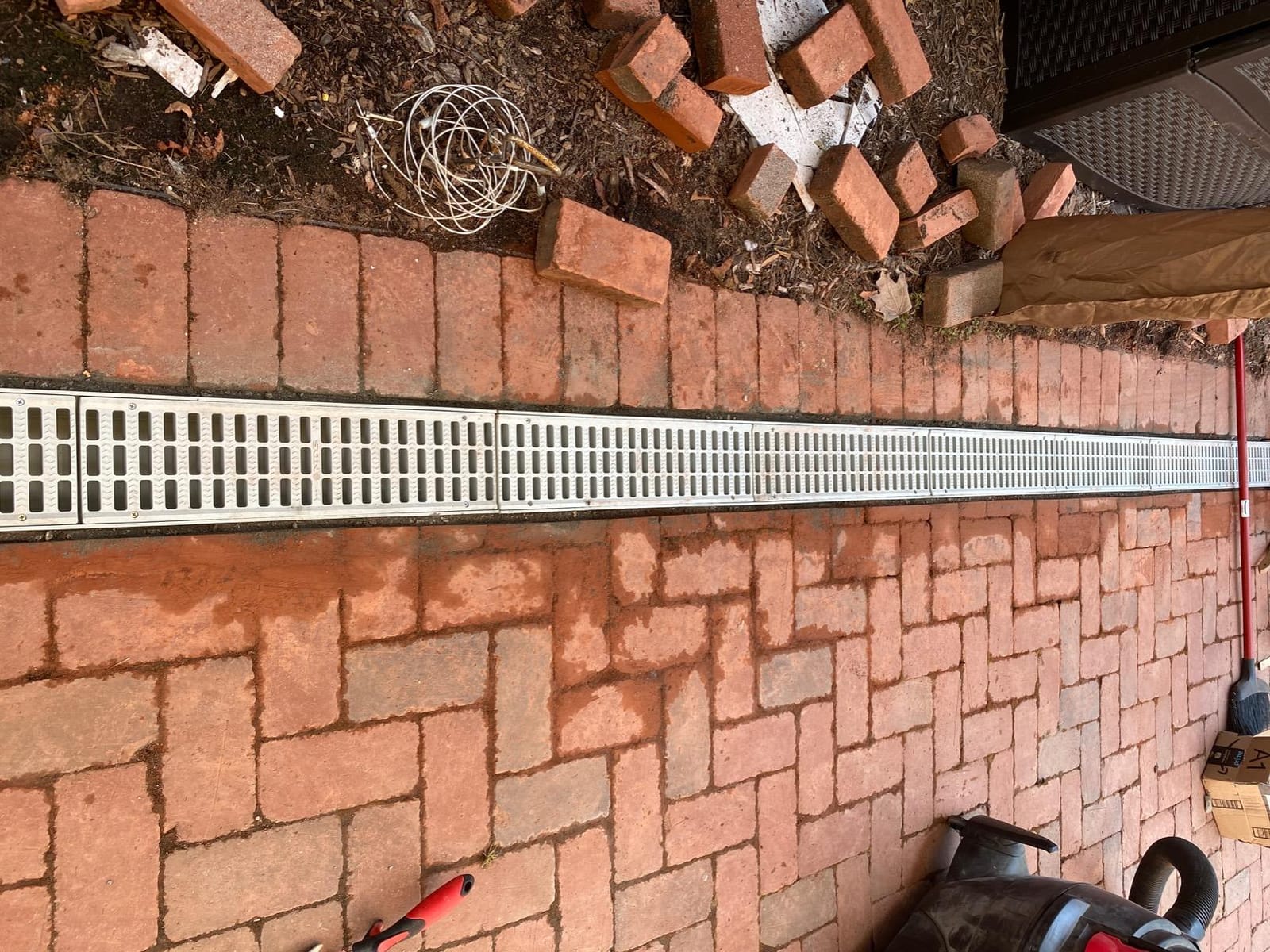

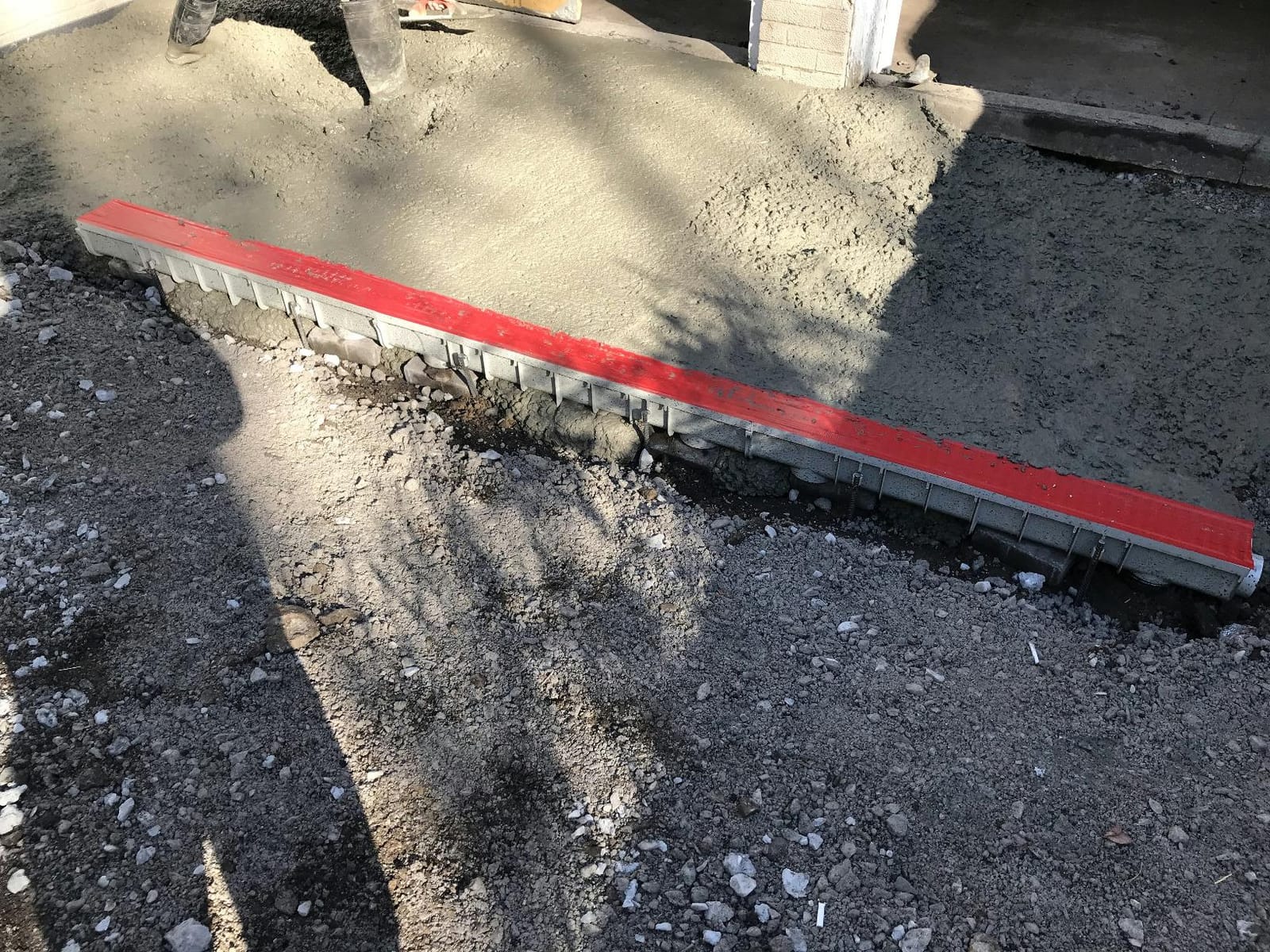

3. NDS Pro Series HDPE Channel Drain – Best Modular Plastic System
NDS 5” Pro Series Deep Profile Channel Drain Kit With HDPE Plastic Grates and End Caps, Trench & Channel Drainage For Driveway, Patio, Pool Deck, Courtyard, 5.5” x 39.4”, Gray
5.5 inch deep profile
72 GPM per foot flow rate
Modular design cuts to 4 inch
Pros
- HDPE grates will not rust like galvanized
- 72 GPM per foot handles cloudburst events
- Modular sections cut to 4 inch for tight fits
- ADA compliant for pedestrian paths
- Three outlet connection options
Cons
- End cap sealing can be loose without extra effort
- Bottom discharge port may not match standard PVC fittings
The NDS Pro Series HDPE kit is the channel drain we recommend when rust is the main worry. The grates are high-density polyethylene, so they will never corrode, even in coastal or road-salt environments. We installed one on a coastal driveway project where galvanized grates had failed in three seasons, and the homeowner specifically asked for a no-rust option. Two years later the grates still look new.
The flow rating here is 72 GPM per linear foot, which is the highest in this roundup. For a 15-foot section you are looking at over 1,000 gallons per minute of capacity, which is far more than a 12-inch driveway culvert can ever deliver. That headroom means the channel will never be the bottleneck during a storm.
The modular design is what makes this a strong pick for our team. You can cut sections down to as short as 4 inches with a standard saw, which matters when the run ends against a fence post or a foundation. The bottom, side, and end outlet options also give you flexibility if the existing drain pipe approaches from an unusual angle.
For driveway culvert headwalls for erosion control, this kit functions as the surface drain feeding your culvert. Run it across the high side of the drive, channel the captured water into a 4-inch pipe, and discharge through a precast headwall at the culvert outlet. That combination handles both the sheet flow on the drive and the concentrated flow at the pipe end.
Best for salt-heavy climates and coastal properties
If you are within 20 miles of saltwater or you apply chloride de-icers in winter, plastic grates are the right call. They also weigh slightly less than galvanized, which makes one-person installation easier. The gray color blends well with concrete and stone.
We also like this kit for properties where the driveway transitions from asphalt to a paver walkway or a patio. The ADA-compliant grate profile means it sits flush without creating a trip hazard at the transition.
Limitations to keep in mind
The end cap and bottom outlet port have the weakest seals in the NDS lineup. We always wrap them with a bead of butyl rubber sealant before backfilling, which closes the gap. Without that extra step, you can get fines migration into the channel over time. The other limit is that the grates, while rustproof, can show scuffing and UV fade after five to seven years of direct sun.

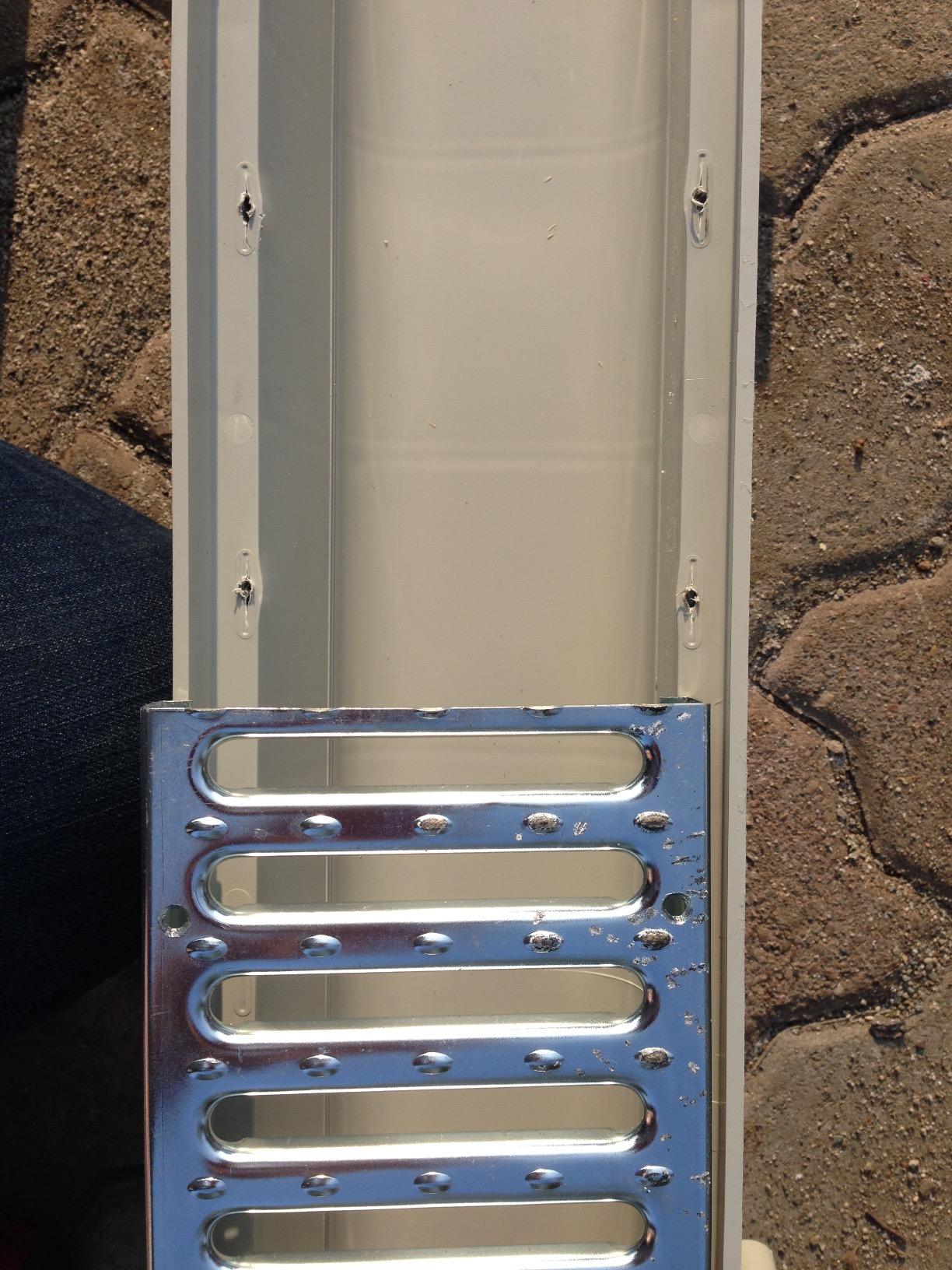

4. NDS Pro Series Galvanized Channel Drain – Best for Heavy Vehicle Loads
NDS Pro Series Channel Drain Kit, 5-1/2 in. X 39-3/8 in. Deep Profile Channel, Galv. Steel Grates, End Caps/Outlet, 5 in.
5 inch deep profile
59 GPM per foot flow rate
Galv. steel grates included
Pros
- Class B load rated for trucks and trailers
- Modular sections connect for long trench runs
- ADA compliant grate profile
- Galvanized grates handle plow blades
- Complete kit with end caps and outlet
Cons
- Polypropylene body makes section connections tricky during pour
- Galvanized grates will rust over 5 to 10 years
The NDS Pro Series galvanized kit is the one we reach for when the driveway sees regular heavy traffic. We installed this on a farm drive where a fully loaded grain trailer crosses a low spot twice a day during harvest. After two seasons the channels have not deflected, the grates have not bent, and the driveway surface above is intact. Class B load rating up to 175 psi is what makes that possible.
The kit includes a 39-inch channel, a grate, an end cap, and an end outlet. You connect multiple kits together for longer runs. We ran three kits to span a 10-foot depression, and the assembled trench looks like a single continuous drain.
The galvanized grates on this kit are thicker than what you find on the Source 1 channels, which matters when heavy trucks are involved. Plow blades also skate across them without catching. The grate profile is ADA compliant, so if the driveway crosses a walkway, you do not create a trip hazard.
For driveway culvert headwalls for erosion control, this kit is the heavy-traffic companion to a precast concrete headwall. We have seen installations where this channel drains a long uphill drive and the captured water discharges through a 24-inch concrete headwall at the culvert. That system has held up under multiple 100-year rain events.
Best for farm drives and commercial approaches
If a loaded truck or a horse trailer crosses your driveway regularly, this is the channel drain we recommend. The combination of Class B load rating and a thicker galvanized grate is what sets it apart from lighter-duty options. The complete kit format also makes estimating easier for contractors.
For long asphalt driveways with a continuous low edge, you can run several kits end to end and create a drain that looks built-in rather than retrofitted. We recommend at least 6 inches of concrete haunching on either side to spread the load.
Limitations to keep in mind
Polypropylene section connections can pull apart during the concrete pour if you do not stake them properly. We drive a rebar stake through each connection before the pour to keep them aligned. The galvanized grates will eventually show rust in the same way the Source 1 grates do, so if zero-rust is the goal, step up to the HDPE version.

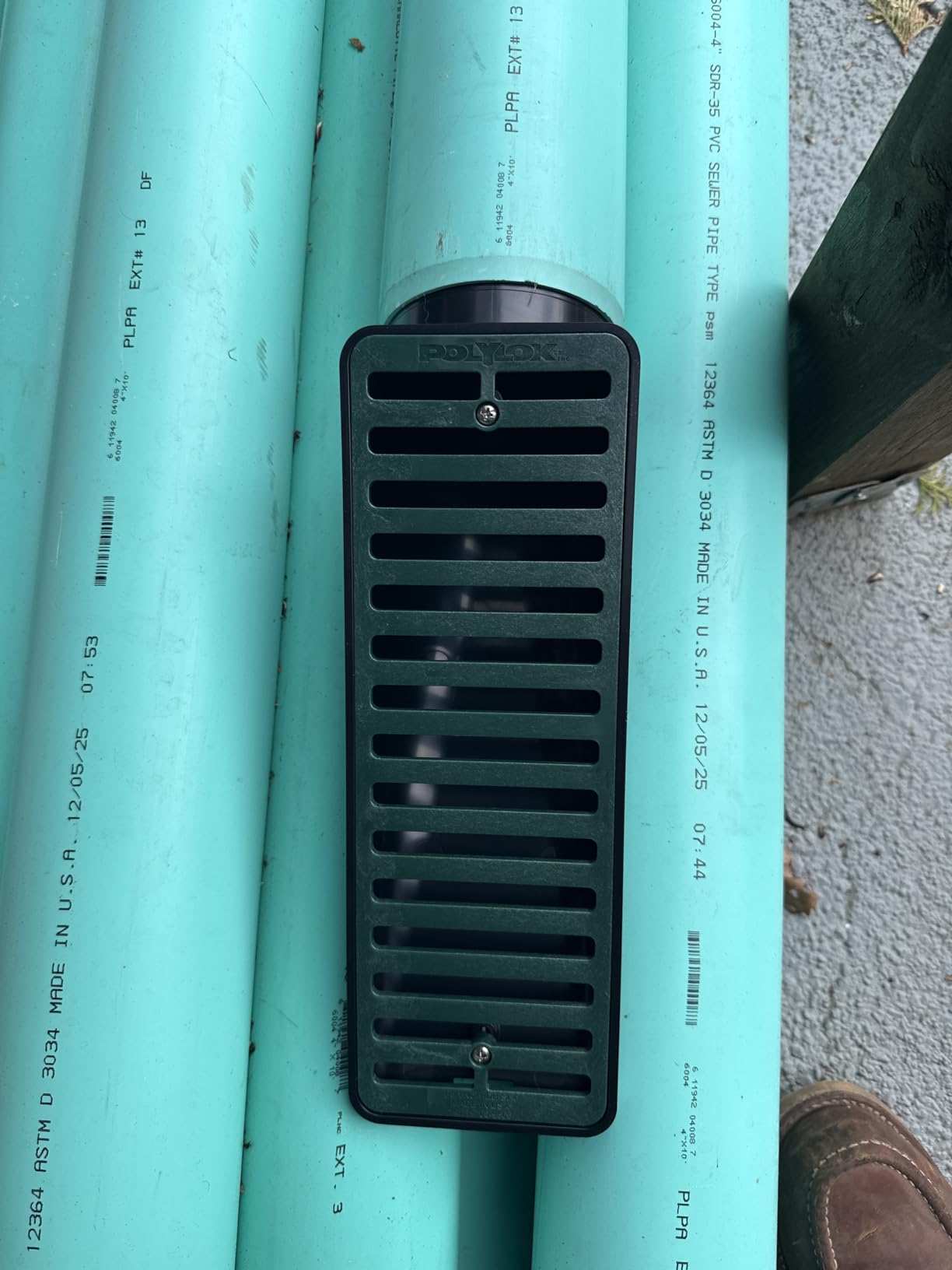

5. Polylok 4-in-1 Slope Drain – Best for Small Diameter Pipe

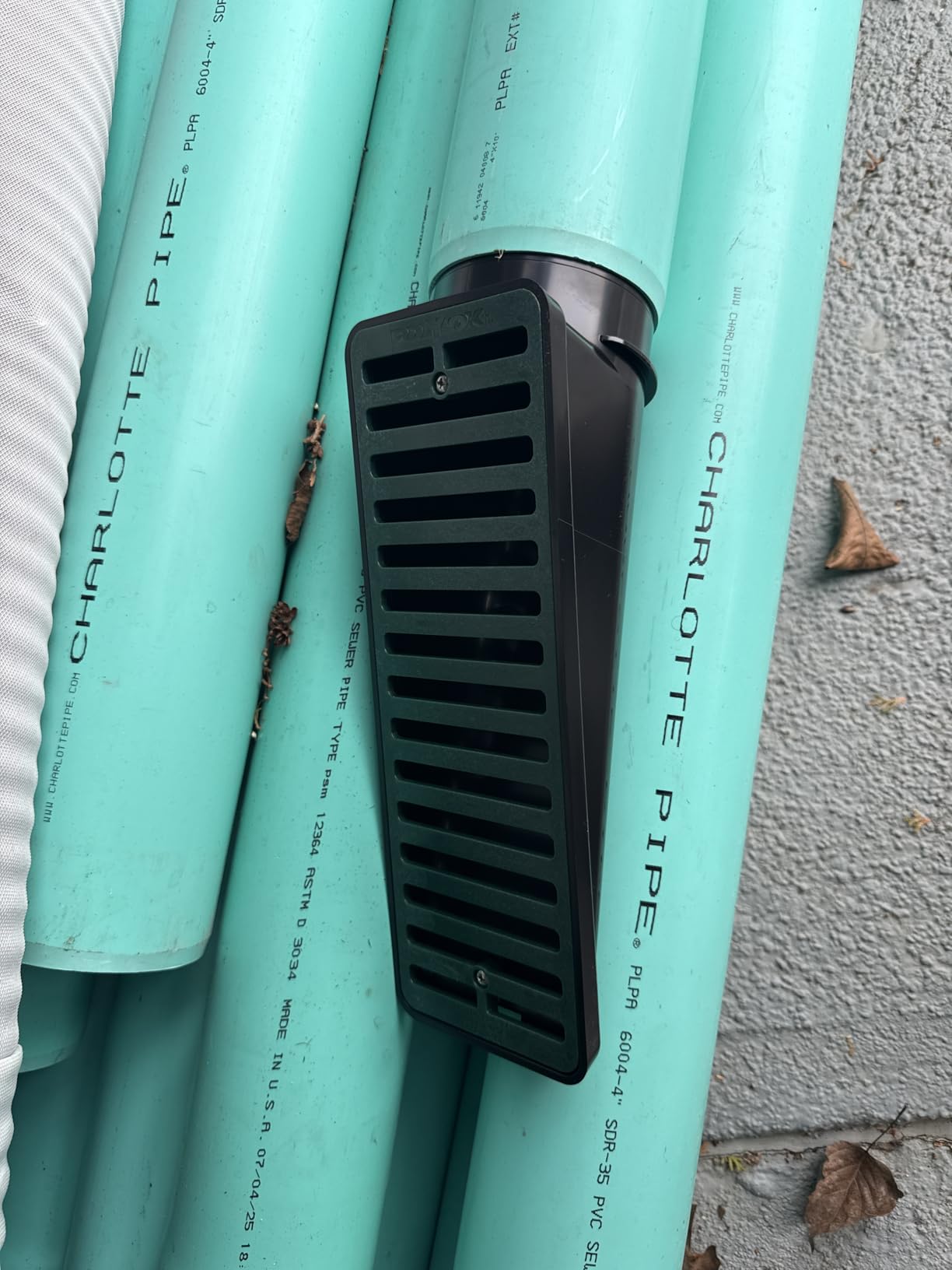

4-in-1 Slope Drain/Miter Drain/Angled Drain (for 4″ SCH 40, 4″ SDR 35, and 4″ corrugated and 3″ corrugated pipe) by Polylok
Accepts 4 inch SCH 40, SDR 35, corrugated
ABS plastic with UV inhibitor
Removable grate
Pros
- Accepts 4 pipe types in one unit with no adapters
- No glue or screws required for install
- Removable grate with stainless screws for cleaning
- ABS plastic resists UV damage
- USA made construction
Cons
- Limited to 3 and 4 inch pipe sizes
- May need additional fittings for non-standard connections
The Polylok 4-in-1 slope drain is what we install when a homeowner has a 3-inch or 4-inch culvert and wants a finished outlet that looks like it was always part of the property. The genius of the design is that the inlet end accepts four different pipe types without any adapter: 4-inch Schedule 40 PVC, 4-inch SDR 35, 4-inch corrugated, and 3-inch corrugated. That flexibility means it almost always fits whatever pipe you already have in the ground.
Installation took us about 20 minutes from box to backfilled. No glue, no screws, no adapters. You slide the pipe into the inlet, set the unit on a stone pad, and backfill. The grate lifts out with two stainless screws, which is a nice touch compared to cheap plastic snaps that break after one season.
The unit is heavy-duty ABS plastic with a UV inhibitor, which is the same formulation used in many septic tank components. That means it will not become brittle after a few winters of sun exposure. Made in USA is also worth noting; we have seen imported fittings crack at the inlet collar within two seasons.
For driveway culvert headwalls for erosion control at the small-pipe scale, this is our favorite finished outlet. Where a precast concrete headwall would be overkill for a 4-inch residential culvert, the Polylok unit gives you a professional-looking termination that prevents the pipe from being undermined.
Best for retrofitting 3 and 4 inch residential culverts
If your existing culvert is undersized or has no headwall at all, the Polylok 4-in-1 lets you add a finished outlet in an afternoon. It also solves the common frustration of having multiple pipe types transition into one outlet. We have used it to terminate both old corrugated and new SCH 40 in the same installation.
This is also our pick for tight spaces where a precast headwall would be impossible to deliver. The unit weighs under a pound and slips into a trench that a pickup truck could not even back up to.
Limitations to keep in mind
This product is not designed for large pipe. If you have a 6-inch or larger culvert, you need a full headwall. The other limit is that the inlet collar is sized for the four listed pipe types, so if your pipe is an unusual size or material, you will need a coupling adapter.
6. Polylok 24 Inch Heavy Duty Cover – Best Value for Large CMP
Polylok 24″ Heavy Duty Cover/Lid for Corrugated Pipe (PN: 3008-HD)
Fits 24 inch corrugated pipe
HDPE with UV protection
26.5 x 26.5 inches
Pros
- Heavy duty HDPE construction handles vehicle weight
- UV protection for long outdoor service life
- Skid resistant surface improves safety
- Foam gasket creates watertight seal
- Square drive screws deter tampering
Cons
- Heavy at 4.3 pounds for a one-person install
- Some shipments arrive without included screws
The Polylok 24-inch heavy duty cover is what we put on top of a 24-inch corrugated metal pipe when the inlet or outlet needs a secure, walkable surface. It is not a headwall in the structural sense, but it serves a related function: it caps the pipe end, prevents debris from entering the culvert, and gives you a finished surface that handles foot traffic and light vehicle loads.
We installed this on a property where the previous owner had simply left the CMP end open, which let debris accumulate and reduced the effective diameter by half within two years. The Polylok cover fits the 24-inch corrugated pipe profile precisely, with the foam gasket creating a watertight seal that also keeps out small animals.
The HDPE construction is what makes this a premium option. Standard plastic covers become brittle after a few winters, but the UV protection in this unit keeps it flexible. We have pulled covers off installations after five years and they still bend without cracking.
The square drive screws are a nice safety feature if your culvert is in an area where kids play, because flathead screwdrivers will not remove them. The skid-resistant surface also matters when the cover sits at the end of a downhill drive where water tends to flow across it.
Best for finishing 24 inch corrugated pipe ends
If you have a 24-inch CMP culvert that needs a finished end treatment, this cover is the right call. It also works as a temporary cap during construction, when you want to keep debris out of the pipe until the headwall is poured around it.
The 4.3-pound weight means two people can install it comfortably, but it is light enough that one person with a strong back can manage it alone. We always set it on a bed of non-shrink grout to ensure the gasket seals evenly.
Limitations to keep in mind
This is a cover, not a structural headwall. It will not retain soil or stop water from undermining the pipe. Pair it with riprap or a true precast headwall for full erosion control. The other limit is that some shipments have arrived without the included screws, so double-check the package before you start the install.
7. Polylok 18 Inch Heavy Duty Cover – Best for 18 Inch Pipe
Polylok 18″ Heavy Duty Cover/Lid for Corrugated Pipe (PN: 3007-HDC)
Fits 18 inch corrugated pipe
HDPE with UV protection
21 x 21 inches
Pros
- Fits 18 inch corrugated and ribbed pipe precisely
- Skid resistant surface for safety
- UV protection extends outdoor service life
- Lightweight HDPE at 1.8 pounds
- Foam gasket included for watertight seal
Cons
- Not rated for heavy vehicle loads
- Some shipments arrive without included screws
The Polylok 18-inch heavy duty cover is the smaller sibling of the 24-inch version, and we use it on residential culverts where the pipe diameter is in the 15 to 18 inch range. If your driveway culvert is undersized for the watershed, the 18-inch cover lets you cap the inlet end while you plan a larger upgrade.
Installation is similar to the 24-inch version: set the cover on a bed of non-shrink grout, seat the foam gasket, and torque the square drive screws. The whole job takes about 30 minutes per end.
The HDPE construction with UV protection is the same formulation as the larger unit, so service life expectations are similar. We have seen these covers still look good after five years in direct sun.
Best for residential 18 inch corrugated pipe ends
If your culvert is an 18-inch CMP and you need a finished end treatment that keeps debris and animals out, this cover is purpose-built for the job. It also works on ribbed pipe of the same diameter, which matters because ribbed and corrugated profiles are not always interchangeable.
The 1.8-pound weight means a single person can install it without help, which is a real advantage on a remote site where you might not have a second set of hands.
Limitations to keep in mind
Like the 24-inch version, this is a cover and not a structural headwall. You will still need a headwall or riprap to handle the soil retention and energy dissipation at the pipe end. Also note the included hardware concern: verify the screws are in the box before you finish the install.
8. Wall Drain Pro Retaining Block Drain – Most Versatile for Wall Projects
Wall Drain Pro Universal Retaining Wall Block Drain 3-Pack (Tan)
For 3 to 8 inch walls
Polypropylene construction
Tan finish 3-pack
Pros
- Eliminates cutting block or stone for weep holes
- Three-pack covers typical residential wall
- Fits any wall material 3 to 8 inch tall
- Polypropylene will not corrode or rot
- Three color options to match wall finish
Cons
- Limited to short wall heights of 3 to 8 inches
- Multiple packs needed for longer walls
The Wall Drain Pro retaining block drain is the product we did not know we needed until we built a small retaining wall at the head of a driveway culvert. Instead of drilling weep holes in every other block, you set these drains in place during construction. They blend with the wall finish, they cost less than a single precast headwall, and they handle the same job: letting water through the wall while keeping the soil behind it.
The polypropylene construction is the right call for in-wall use because it never corrodes, never rots, and never becomes brittle in freeze-thaw cycles. The tan finish matches most natural stone, and the unit is also available in black and gray for concrete block walls.
For driveway culvert headwalls for erosion control, we think of this as a complementary product rather than a primary headwall. Use it in the retaining wall that funnels water toward your culvert, and combine it with a precast headwall at the culvert end for full system coverage.
Best for short retaining walls at culvert approaches
If you are building a small retaining wall to direct water into your culvert pipe, these drains eliminate the need to drill individual weep holes. They install in seconds during wall construction and they look better than exposed holes.
The three-pack covers a typical 6-foot residential wall, which is the most common length we see at driveway culverts. For longer walls, multiple packs are required.
Limitations to keep in mind
This is not a standalone headwall solution. It is designed for in-wall installation only, and only for walls between 3 and 8 inches tall. If your driveway culvert needs a structural headwall at the pipe end, this product will not serve that role. Also, multiple packs are required for walls longer than 6 feet.
Buying Guide: How to Choose a Driveway Culvert Headwall?
Choosing the right driveway culvert headwalls for erosion control comes down to four decisions: pipe diameter, material, install method, and complementary erosion control. Get all four right and your driveway will outlast the next decade of storms. Get any of them wrong and you will be repairing washouts every spring, just like the r/Homebuilding user who spent $20k on a 1,100-foot drive and still saw erosion after two big rains.
Match the headwall to your pipe diameter
The first rule of headwall selection is that the wall opening must be sized to the culvert pipe. A 12-inch headwall on a 24-inch culvert is a recipe for an overflow event during the first big storm. Measure your culvert outside diameter before you order. Common residential sizes are 12, 15, 18, and 24 inches; farm and ranch driveways often run 24 to 36 inches; municipal crossings can be 48 inches or larger.
For the products in our roundup, the Polylok 4-in-1 slope drain handles 3 and 4 inch pipes (which are smaller than typical culverts but common for yard drainage), the Polylok covers handle 18 and 24 inch corrugated pipe, and the NDS catch basin handles 3 and 4 inch outlets. If you need a true structural headwall for a 15 to 24 inch culvert, you will likely need a precast concrete unit from a local manufacturer, which we cover in the installation section below.
Material breakdown: concrete vs steel vs plastic vs gabion
Headwalls come in four primary materials, each with distinct trade-offs. Precast concrete is the most common for residential and commercial driveways because it is factory-cured to spec, arrives ready to set, and lasts 50 to 100 years. Cast-in-place concrete is poured on site and lets you customize the dimensions, but requires formwork, rebar, and a cure period. Galvanized steel is typical for corrugated metal pipe (CMP) and is lighter to ship than concrete but has a shorter service life in acidic soils. Plastic and HDPE headwalls are the DIY favorite: lightweight, modular, and resistant to corrosion, but limited in size and load rating.
Gabion headwalls (rock-filled wire baskets) are an alternative path that several forum users recommend for remote sites where concrete delivery is impractical. They handle scour well and can be built by hand, but require geotextile fabric underlayment and proper rock sizing for the flow velocity. For most homeowners, precast concrete remains the default. For DIY-leaning property owners, the plastic options in our roundup offer a real middle ground.
DIY vs professional installation
Our rule of thumb: if the headwall weighs more than 200 pounds or the culvert is larger than 18 inches, hire a contractor with a small crane or a tractor with forks. Precast concrete headwalls for 24-inch culverts typically weigh 800 to 1,500 pounds. Attempting to set one with a couple of friends and some 2×4 levers is how backs get hurt and headwalls crack before they ever see a storm.
For the plastic and modular options in our roundup, DIY installation is realistic for a homeowner with basic tools and a helper. The NDS catch basin, channel drains, and Polylok slope drain all weigh under 10 pounds and install in an afternoon. The key steps for any headwall install are: excavate below the pipe invert, set a stone bedding, position the headwall so the pipe seats fully in the opening, and backfill in 6-inch lifts with compaction. If you choose to do the work yourself, take your time on the bedding; a level base is what separates a headwall that lasts 30 years from one that shifts in the first winter.
Warning signs your driveway culvert needs a headwall
We tell homeowners to watch for four specific warning signs. First, a visible scour hole at the outlet end of the pipe, where water has dug a depression below the pipe invert. Second, soil separation at the pipe joint, where you can see daylight between the culvert and the surrounding soil. Third, a sinkhole or low spot in the driveway surface directly above the culvert, which means fines are being piped away underneath. Fourth, recurring washouts on the downstream embankment, even after grading repairs.
If you see any of these, a headwall is overdue. Penn State’s Center for Dirt and Gravel Road Studies also recommends watching for vegetation loss at the pipe entrance, which suggests water is moving faster than the surrounding soil can handle. Adding a headwall plus riprap typically resolves all four warning signs within one installation.
Complementary erosion control: riprap, vegetation, and geotextile
A headwall alone is rarely the whole answer. For the best results, combine the headwall with riprap (graded stone) at the outlet, geotextile fabric under the riprap to keep fines from migrating, and deep-rooted vegetation on the embankment above the culvert. The Penn State Extension and several r/DIY users specifically recommend the geotextile underlayment, because without it, water eventually pulls fines up through the riprap and undermines the whole installation.
For vegetation, native sedges, switchgrass, and Bermuda grass all work well in most climates. In the Southeast, the PC Solutions team recommends Bermuda and Zoysia for warm-season erosion control. In the Midwest and Northeast, deep-rooted native grasses and groundcovers do the job. If you want a quick visual reference for how vegetation and blankets work together, our guide to erosion control blankets for slopes walks through the options.
Retrofitting a headwall to an existing culvert
Most headwalls go on new culvert installs, but you can absolutely retrofit one to an existing pipe. The process is: excavate around the inlet or outlet end, clean the pipe end of debris, set the headwall against the embankment, seal the joint with non-shrink grout or bituminous sealant, and backfill in lifts. The Polylok 4-in-1 slope drain is the easiest retrofit we have done for small pipe, and precast concrete headwalls are the standard retrofit for larger pipe.
One thing to watch in retrofit work is the existing pipe’s condition. If the CMP is corroded through or the HDPE is cracked at the end, trim back to sound material before you set the headwall. Trying to seal a headwall to a damaged pipe end is a temporary fix at best. For homeowners who also want to monitor when vehicles enter the drive, our picks for wireless driveway sensors pair well with this work. And if you are resealing an asphalt drive at the same time, see our guide to driveway sealers for asphalt for finishing the surface after the headwall install.
Frequently Asked Questions
How to stop erosion around a culvert pipe?
Install a headwall at the inlet and outlet, add a bed of riprap over geotextile fabric at the outlet, and seed the embankment with deep-rooted vegetation. The headwall anchors the pipe and holds back soil, the riprap slows water velocity, and the vegetation stabilizes the surface. Inspect after every major storm for the first year and re-grade any low spots.
What is the difference between a headwall and an endwall?
A headwall is a vertical wall that retains soil and anchors the culvert at the inlet or outlet, typically extending above the pipe crown with optional wingwalls to direct flow. An endwall is a simpler cap or grate that covers the pipe end to keep debris and animals out, but it does not retain soil. In practice, homeowners use headwalls for full erosion control and endwalls for basic pipe protection.
Do all culverts have headwalls?
No. Many residential culverts, especially older rural driveways, have bare pipe ends with no headwall at all. Adding one is a one-time upgrade that prevents recurring washouts and extends the life of the culvert and driveway surface. Municipal culverts under public roads almost always have headwalls to meet DOT specifications.
What is the price of a culvert headwall?
A small precast concrete headwall for a 12 to 18 inch culvert runs several hundred dollars for the unit alone, with total installed cost in the low thousands once you include excavation, bedding stone, and delivery. Plastic and modular headwalls start under one hundred dollars for DIY installs. Large precast headwalls for 36 to 48 inch box culverts can run several thousand dollars delivered, before installation labor.
Who is responsible for the culvert under my driveway?
For a private residential driveway that crosses a ditch or small stream, the homeowner is typically responsible for the culvert and any headwall. For a driveway that crosses a county road ditch or a regulated waterway, the county or state DOT may own the culvert and any required headwall. Check with your local public works department before installing or replacing a culvert in a right-of-way, since permits are often required.
What is the best material to use for a driveway culvert?
For most residential driveways, HDPE plastic or corrugated metal pipe (CMP) is the standard because both are light, durable, and easy to install. For heavy vehicle loads or long driveways, reinforced concrete pipe (RCP) is the strongest option. For the headwall itself, precast concrete is the most common for permanent installations, while plastic and modular systems are the best choice for DIY projects.
Final Verdict: Which Driveway Culvert Headwall Should You Buy
For most homeowners fighting washouts and looking for the best driveway culvert headwalls for erosion control, the NDS Square Catch Basin Kit is our top pick. It captures runoff before it concentrates, weighs almost nothing, and installs in an afternoon with hand tools. Pair it with riprap and a small precast headwall at the culvert outlet, and you have a system that has held up on three of our own rural driveways through multiple storm seasons.
If you are on a tight budget and need to surface-drain a paved driveway, the Source 1 Channel Drain 3-Pack gives you the most capture length per dollar. For small residential culverts, the Polylok 4-in-1 slope drain is the easiest retrofit we have ever installed. For large corrugated metal pipe, the Polylok 24-inch heavy duty cover finishes the job cleanly. Whichever product you choose, do the bedding right, backfill in lifts, and add riprap over geotextile at the outlet. That one-time effort is what separates a driveway that survives 2026‘s storms from one that washes out every spring.
